About Us
Knowledgeable Experts
Our Window installers are highly qualified and have all the Tickets to get your job done quickly and cost effective.
Cert III & IV Shopfitting
Telehandler
White Card
Dogging
Forklift
Open Crane
Working At Height
EWP
RISI
SL
VL
We Care About the Details
Been in the industry since 2003. ONW Glazing takes pride in details to insure customers are always happy with the end result. With relationships with all major suppliers in Australia and Overseas you can be reassured that you will be getting a high quality and long lasting product.
Customer Satisfaction Guaranteed
ONW Structural Glazing Services
Curtain Wall
Structural Glazing
A curtain wall is an outer covering of a building in which the outer walls are non-structural, utilized only to keep the weather out and the occupants in. Since the curtain wall is non-structural, it can be made of lightweight materials, such as Aluminium and Glass, thereby potentially reducing construction costs. All our metal is computer cut and with 2 x Emmegi T3a CNC Machines, every-think lines up perfect every-time.

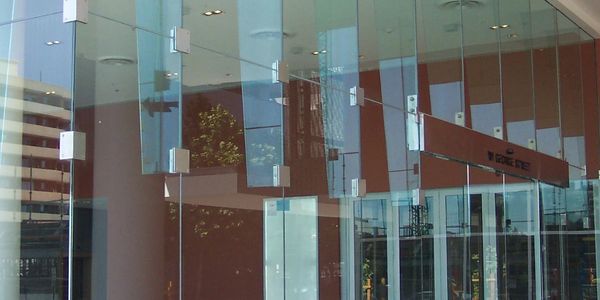

Structural Glazing
Structural Glazing
Structural glazing systems, in their simplest form, are types of curtain wall systems consisting of glass that is bonded or anchored back to a structure without the use of continuously gasketed aluminium pressure plates or caps. Structurally glazed systems create a greater transparency than traditional captured systems.
Glazing Handling
VAC RIG 6/12 Cup - 900kg
A heavy duty commercial rig, designed and engineered to cope with lifting big weights with ease.
Four or six load bearing extension arms can be configured as required to accommodate any glass shape. While the two central cups remain constant, the outer cups can be turned off and on as required.
AGP -100 Pump
The Graco ExactaBlend AGP (Advanced Glazing Proportioner) provides on-ratio dispensing of two-component sealants and adhesives for curtainwall, insulating glass and other applications. The variable ratio ExactaBlend AGP offers advanced technologies at an affordable price.
Precise application of silicone materials in insulating glass or structural glazing applications is critical for delivering superior adhesion, durability and leak-free performance. Advanced pumping technology creates a better, more consistent bead – which results in reduced rework and less wasted material.
Shin-ETsu Shin-Etsu FC-295-SG
SEALANT-FC-295SG is a two-part silicone sealant for unitized curtain wall systems. It is a fast-cure material with excellent adhesion to most glass and painted aluminum surfaces. Once cured, this sealant becomes a high modulus and flexible silicone rubber suitable for structural and weather seal applications. This sealant contributes to the superior productivity and high reliability.
Features
- Two-part and neutral-cure RTV* silicone sealant
- Used with an airless mixing system, when mixed the material exhibits very high workability, even in low temperature environments
- Mixing ratio: Adjusted to 10 (BASE): 1 (CAT) by volume
- Cures very fast and features excellent adhesion to most common materials
- Superior weather resistance to temperature change, moisture, ozone and ultraviolet rays
*RTV stands for ‘room temperature vulcanizing’ which means that this material can be cured at room temperature
Applications
For use in manufacturing of structural and weather seal applications in factory
Specifications
- ASTM C1184*1
- ASTM C920*2 Type M, Grade NS, Class 25, Use NT, G, A
- KS F 4910*3 G-25HM
.
Delivery
With our purpose built Curtain Wall factory appox 2000m2 in Western Sydney. Storing and delivering small, medium and large panels are done with ease and on time, every time. With a 5 tonne overhead crane and steel stillages on hand. We are never waiting for Timber Suppliers or Pallets to be made. Our stillages are all tested to AUS Standards, Stackable and are Craneable.
For All Your Curtain Wall and Structural Glazing Service Enquires click Here
